embedded column

[polatd]

Hi,

I am trying to model embedded column.
When I change the zxx (zero length material) rotational stiffness values that I have defined with elastic material (elastickconn), There is no change in the force displacement grap.

I have doubts about whether I can model correctly. I would be happy if you help me in this subject.

I tried to get help from here but I guess I couldn't do it::
https://opensees.berkeley.edu/wiki/inde ... Foundation

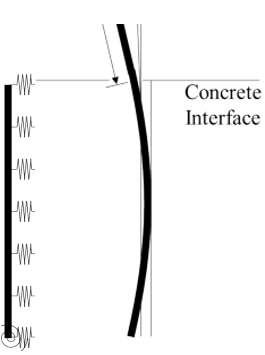

This behaviour.PNG (17.07 KiB) Viewed 1104 times

emdedded.rar

(136.21 KiB) Downloaded 165 times

[polatd]

I would appreciate it if you could give me some advice or guidance.

[kesavapraba]

Hi, It is not very clear to understand your problem. However, I took a look at your model, the material properties of the p-y, t-z, and Q-z nonlinear springs are not defined. Also, the boundary conditions make the pile system not movable at the spring connection points. There are other inconsistencies in analysis settings also. I would suggest to read and double check with the TCL script that you provided for proper boundary conditions and material properties. Thank you.
