Modes of vibration with MPCO recorder

[bozturk]

Hi,

Is there a way to record modes of vibration with MPCO recorder?

I didn't use the STKO pre-processor to build my model; I'm just using the MPCO recorder to get an overview of my model. I need to see the shapes of the different modes, and I'm wondering if the MPCO recorder supports this.

I use the following command to create the recorder: (TCL version)

recorder mpco output.mpco \
-N "displacement" "acceleration" \
-E "force" "deformation" "section.force" "section.deformation" "section.fiber.stress" "section.fiber.strain"

[STKO Team]

here's the MPCORecorder documentation
https://drive.google.com/file/d/1V6Dh8C ... cIDBT/view

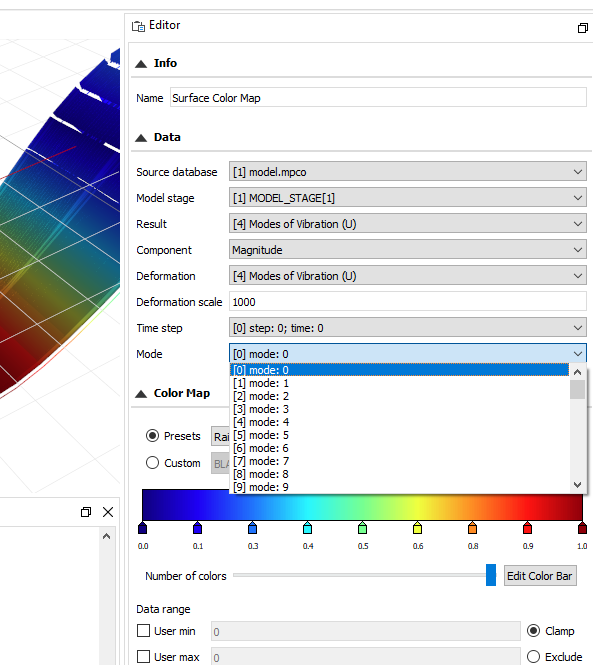

You just need to ask for modesOfVibration in the nodal (-N) results.
