Rigid Diaphragm Interaction

[Zeeshanbhat]

Dear Team,

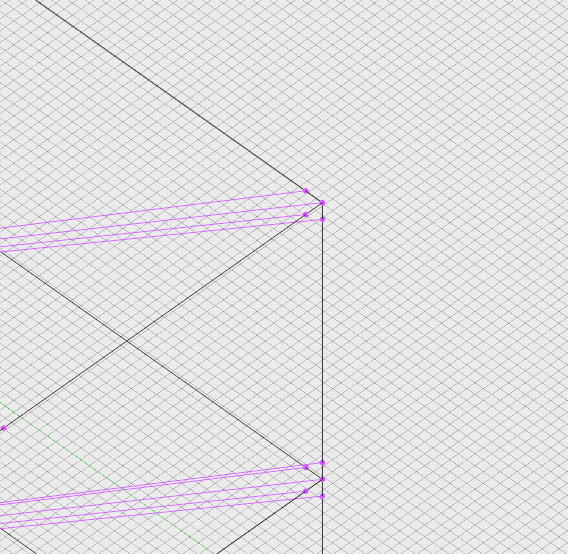

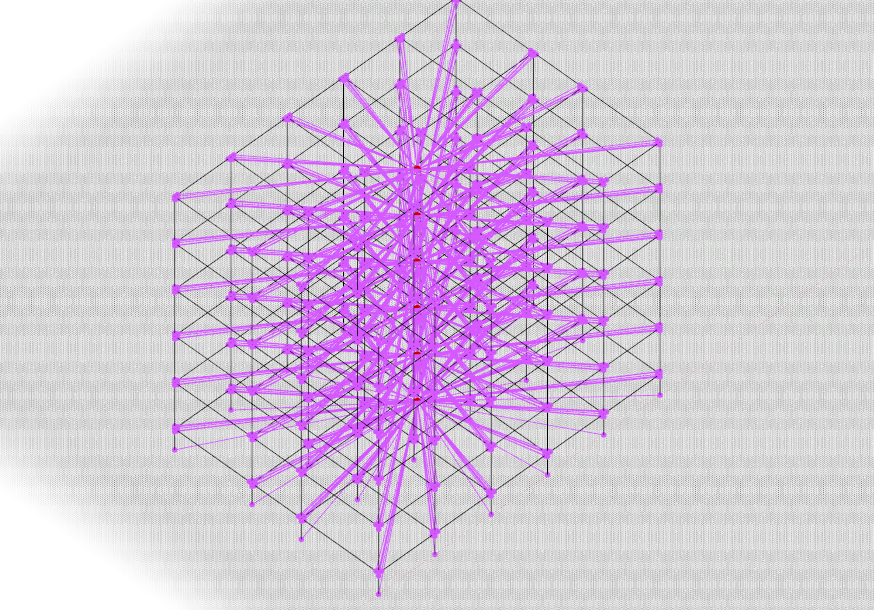

I tried to model beam column joint using elastic beam column. When I define the interaction of rigid diaphragm, all the nodes at the joint section are taken as slave node.



Is there any simple procedure to select only the joint node. Doing it manually one by one will take lot of time in 3D building with 6-7 stories. Any help will be appreciated.

Regards,
Zeeshan Bhat

[STKO Team]

If you create the joints manually, then this is the only way, but it should not be difficult, you can simply allow only the selection of vertices and do a rubber band selection.

Also, if you want to use an automatic approach to beam-column joints, you can have a look at our webinar #10 Nonlinear Analysis of an existing RC building including RC joint modeling
