Hi, I am new in STKO. I want to model an indentation of a cylinder in soil. Can anyone help me with the contact materials that I should use? Additionally, I need some videos that could help me modeling the problem.
Best Regards JP
Indentation
Re: Indentation
Can you post some picture/sketch of what you want to model in detail?
-
jvillacreses
- Posts: 2
- Joined: Sat Sep 11, 2021 8:13 pm
Re: Indentation
Hello,

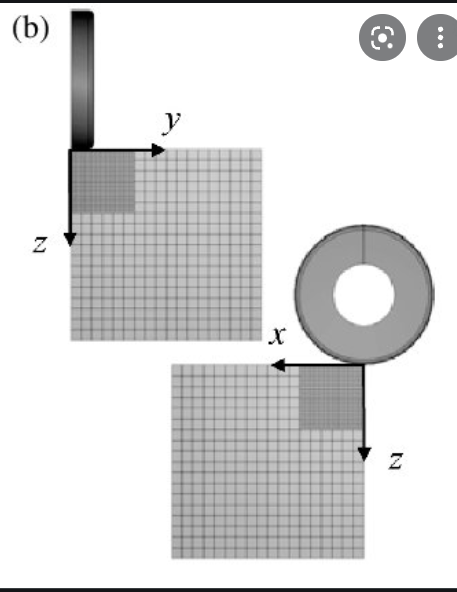

The model is a flexible tire laying on granular soil. I attache a picture of the model.
![Image]()
https://www.researchgate.net/publicatio ... gures?lo=1
The model is a flexible tire laying on granular soil. I attache a picture of the model.
https://www.researchgate.net/publicatio ... gures?lo=1
- Attachments
-
- Capture.PNG (119.35 KiB) Viewed 1791 times
Re: Indentation
Let's say that achieving that in OpenSees is not super easy now.
1) You need a contact detection algorithm, because the tyre travels in time, and the contact element should be updated at every step. OpenSees does not have such a tool now. We are working on it, but I cannot tell you when it will be ready.
2) Probably you need large deformation (finite strain) which is not available in opensees for solid elements.
1) You need a contact detection algorithm, because the tyre travels in time, and the contact element should be updated at every step. OpenSees does not have such a tool now. We are working on it, but I cannot tell you when it will be ready.
2) Probably you need large deformation (finite strain) which is not available in opensees for solid elements.
