static analysis error

Post by Yulu Liu » Tue Nov 19, 2019 3:24 pm

I am running the static analysis.
My model uses special purpose_beamsectionproperty with fibre section.

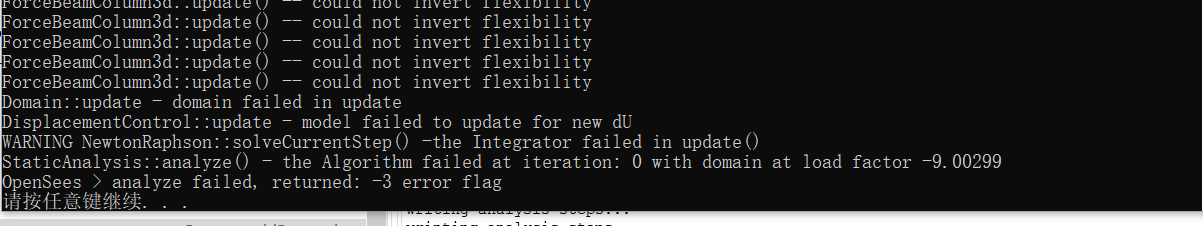

The error is shown in the photo attached.
What does it means please?
Attachments

Yulu Liu
Posts: 22
Joined: Fri Nov 15, 2019 6:31 am

Re: static analysis error

Post by Yulu Liu » Tue Nov 19, 2019 3:42 pm

the same as

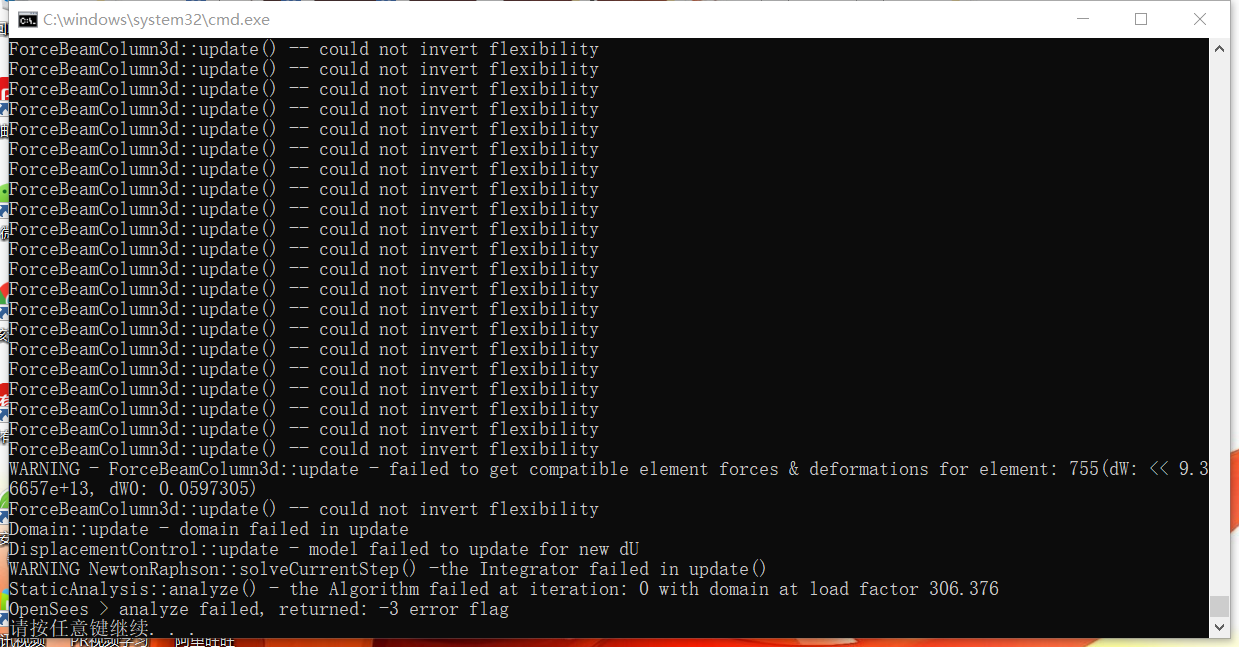

Attachments

STKO Team
Posts: 2068
Joined: Tue Oct 29, 2019 8:45 am

Re: static analysis error

Post by STKO Team » Tue Nov 19, 2019 4:04 pm

Dear Yulu Liu,

that error is saying that the flexibility matrix of one of your sections is singular. In case of fiber sections, make sure material properties are properly defined, i.e. non zero Young modulus, strengths, etc...

Yulu Liu
Posts: 22
Joined: Fri Nov 15, 2019 6:31 am

Re: static analysis error

Post by Yulu Liu » Mon Jan 13, 2020 2:33 pm

Hi~

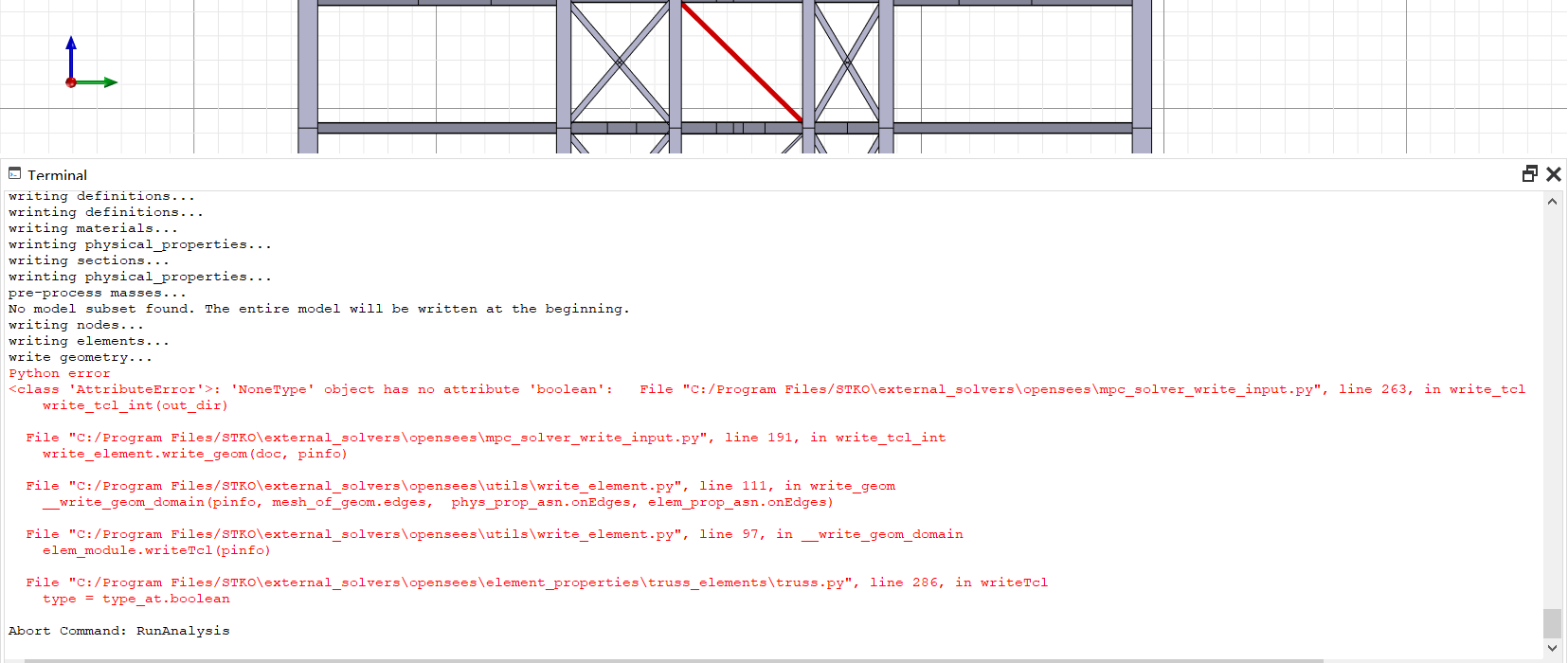

I assign the truss element to one brace, while the all beams and columns are assigned forceBeamColumn element with special_purpose BeamSecionProperty of fiber. When I run the analysis, there comes the error shown as the attached photo. Is there anything wrong? How to make it?
Thank you a lot.
Attachments

STKO Team
Posts: 2068
Joined: Tue Oct 29, 2019 8:45 am

Re: static analysis error

Post by STKO Team » Wed Jan 15, 2020 10:54 am

The error is related to some of the truss elements. It looks like you did not assign a special_purpose.truss physical property.

If you still have problems, please send us the .scd file
