Why I cannot see the pile?

spater · Post by **spater** » Mon Dec 13, 2021 3:48 am

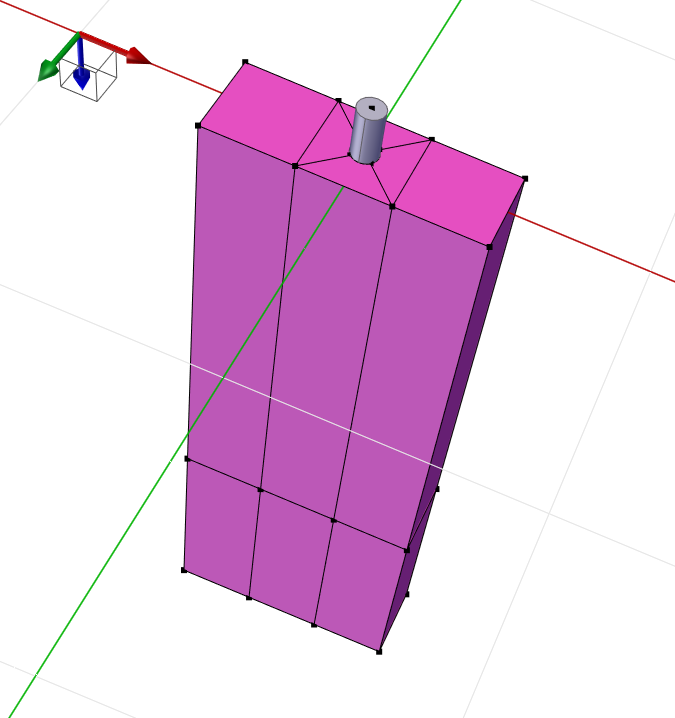

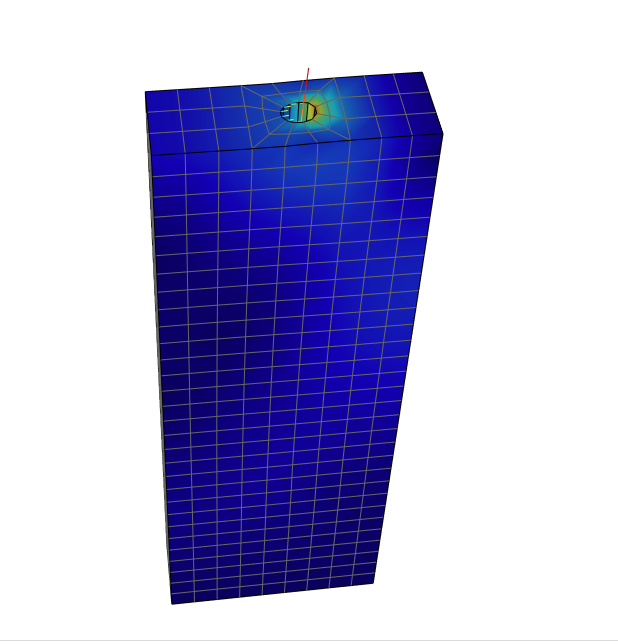

I built the model step by step from your webinar video, but when I finished the analysis, I loaded the results, I only could see the line represented the pile. I assigned the section to the pile. What should I set in the postprocessor?

[email protected] · Post by **[email protected]** » Mon Dec 13, 2021 4:57 am

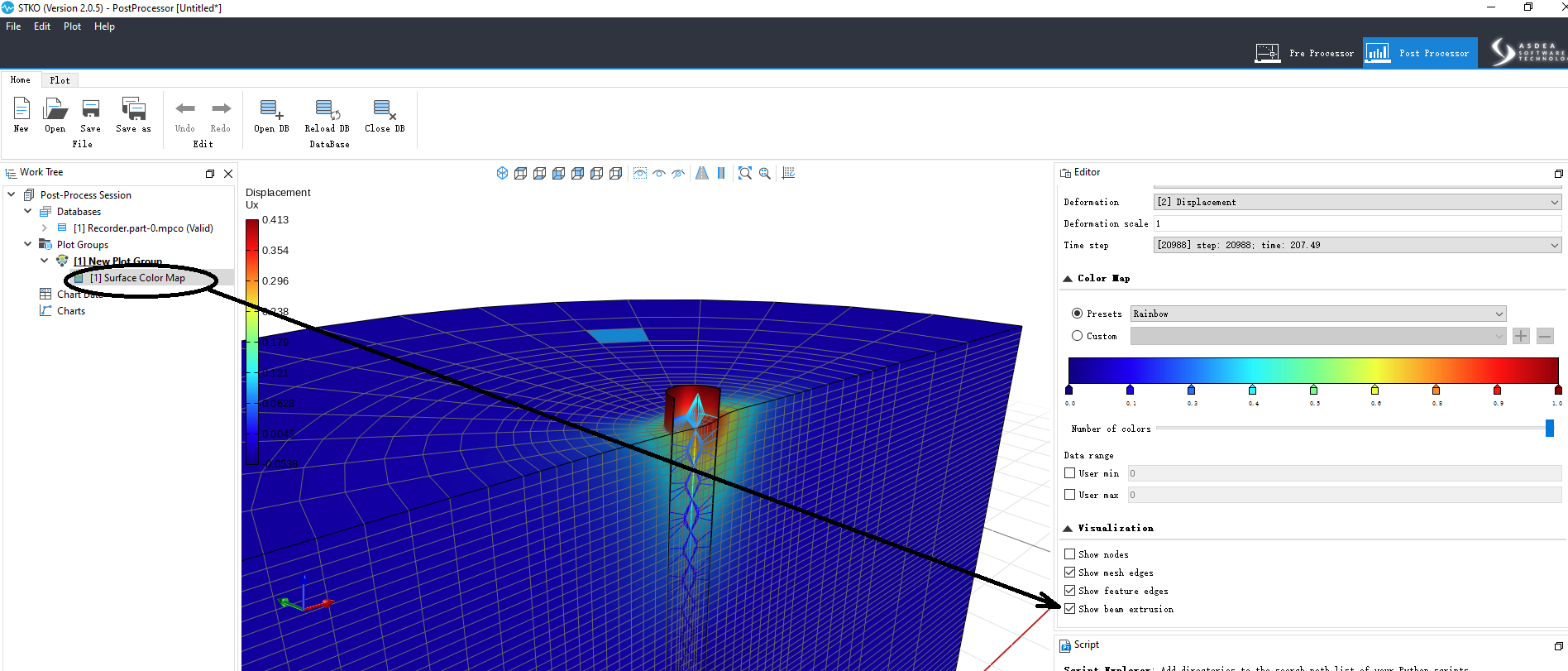

Make sure "show beam extrusion" is turned on in the surface plot options.

: Untitled.png (327.95 KiB) Viewed 3871 times

spater · Post by **spater** » Mon Dec 13, 2021 6:53 am

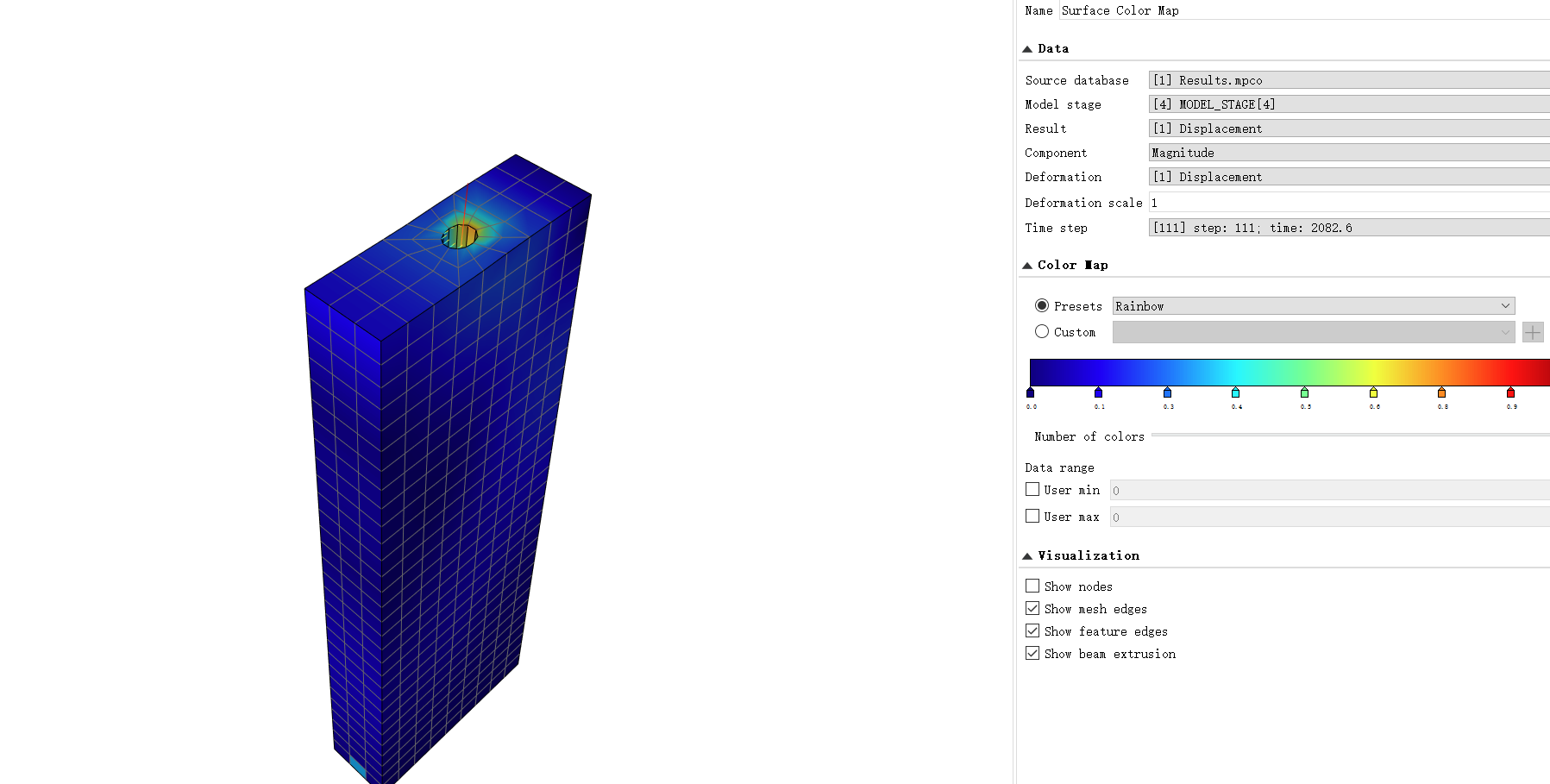

I turned it on but it still invisible.

STKO Team · Post by **STKO Team** » Mon Dec 13, 2021 8:38 am

If you created the model from the STKO pre-processor, and you used an MPCRecorder analysis step (not manually via TCL scripting" you should have a file with the same name of your mpco recorder, but with the mpco.cdata extension.
Can you verify you have it? otherwise the beam extrusion won't be visible.

spater · Post by **spater** » Mon Dec 13, 2021 9:25 am

I downloaded this model from THE STKO website, I want to see the post processing module, but it just can't show the pile.
Can you help me to solve this problem?
It confused me very much.
Thank you!

STKO Team · Post by **STKO Team** » Mon Dec 13, 2021 11:16 am

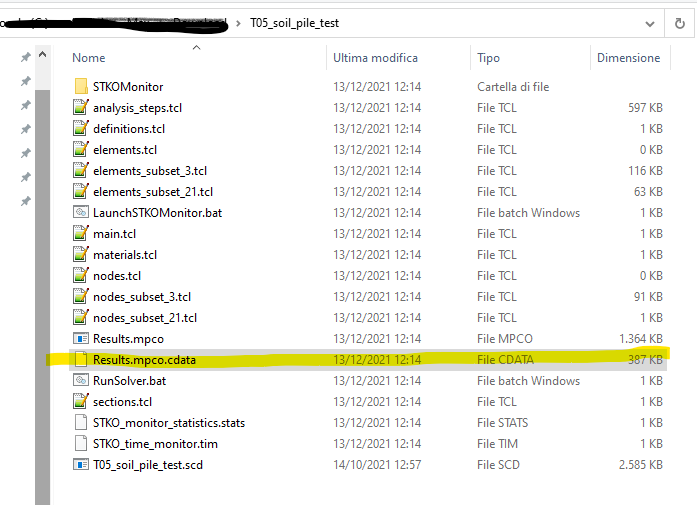

I know. Do you have the .mpco.cdata (the highlighted one) file in your directory?

: Immagine 2021-12-13 121523.png (53.26 KiB) Viewed 3866 times

spater · Post by **spater** » Mon Dec 13, 2021 12:49 pm

I don't have this file.

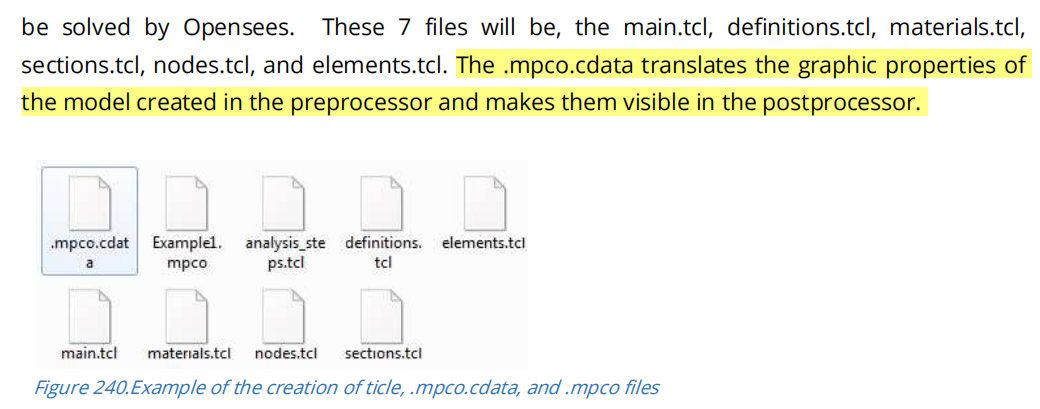

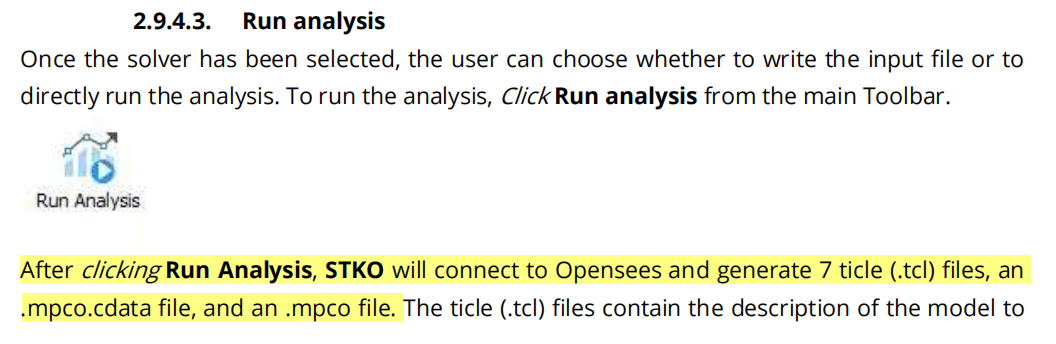

I found the description of the ".mpco.cdata" file in the STKO manual. But when I finished analysis, it didn't creat this file.
How can I deal with this problem?
Thank you very much.
Best reagrd!

spater · Post by **spater** » Wed Dec 15, 2021 2:20 am

can you help me solve this problem? I really need to solve this problem
I hope you can reply to me as soon as possible. Thank you very much.

STKO Team · Post by **STKO Team** » Wed Dec 15, 2021 8:53 am

Unfortunately, the file you attached is perfectly working on our side.
Are you sure you did not change anything in the file?

Can you show a screenshot of what files you have in the folder?

spater · Post by **spater** » Wed Dec 15, 2021 9:20 am

I re-downloaded the file from the official website without making any changes, but it is still the same.
Eventhouht there exised a ***.mpco.cdata file, I still can only see one thread.
Attached is my operation screen recording, please help me solve this problem, I am really anxious.
Thank you very much!
